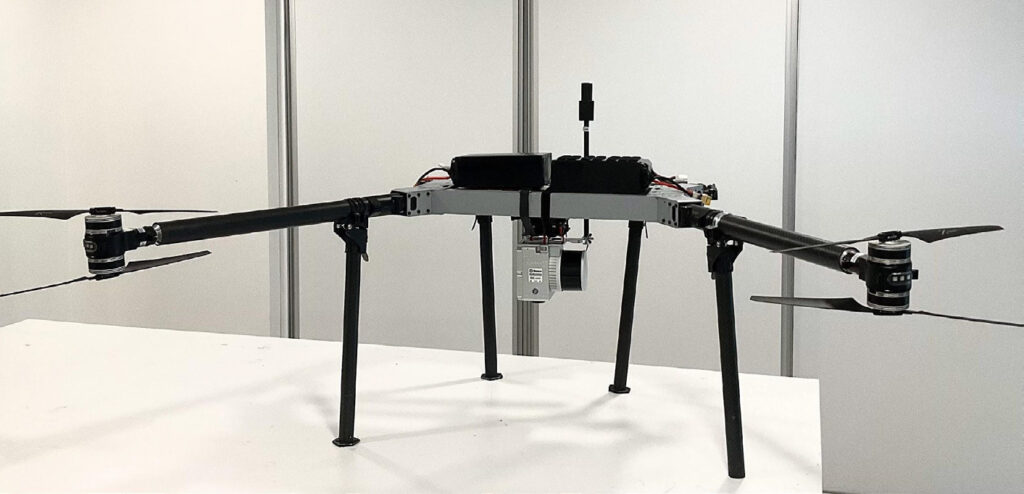

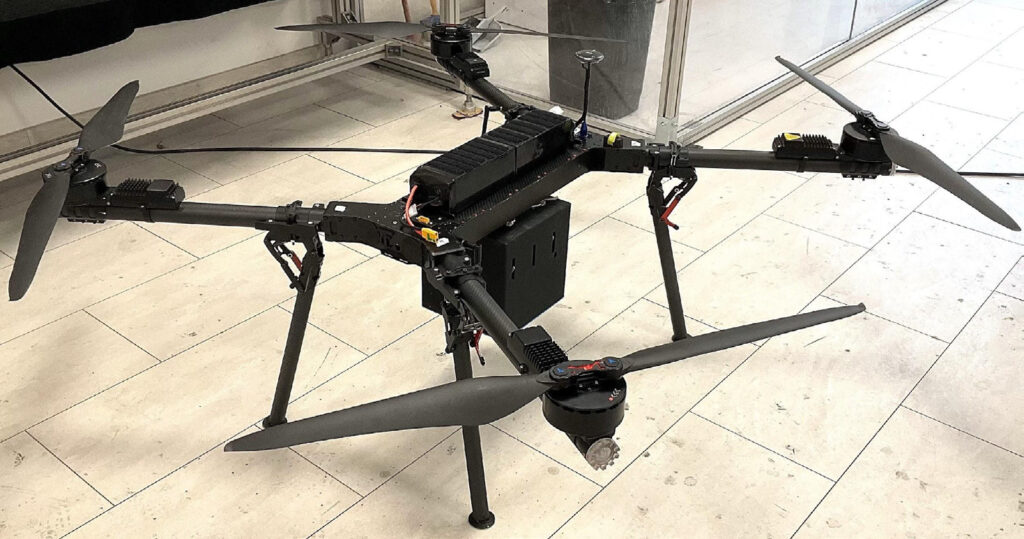

Design and structural features
- Shape: Quad-rotor design for stability and lift
- Material: Lightweight and durable composite materials
- Propellers: 23-inch/19-inch propellers normal and coax solution for optimal lift and efficiency
- Dimensions: Designed for robust performance in various conditions
- Benefits: High durability, low weight, and superior stability
Propulsion and Power System
- Type: Electric motors with 23-inch/19-inch propellers
- Power Source: High-capacity lithium-polymer batteries
- Endurance: 1-3 hours of flight time
- Maximum Speed: 1-17 m/s
- Key Features: High thrust-to-weight ratio, efficient power use, reliable performance
Performance Metrics
- Maximum Speed: 17m/s
- Cruising Speed: 0-5m/s
- Endurance: 1-3 hours
- Service Ceiling: 10-500 meters
- Range: <100 kilometers
- Payload Capacity: 5-45 kg
Quadrocopter – Application in:
Precision Agriculture
- Usage: Crop monitoring, soil analysis, irrigation management
- Sensors: Equipped with LIDAR, RGB, and IR sensors
- Benefits: Increased yield, reduced resource consumption, enhanced crop health monitoring
Surveillance and Mapping
- Usage: Area surveillance, 3D mapping, infrastructure inspection
- Sensors: High-resolution cameras, LIDAR, and thermal imaging
- Benefits: Accurate data collection, real-time monitoring, detailed mapping
Military
- Usage: Reconnaissance, surveillance, projectile launching
- Systems: Integrated projectile launching system for tactical operations
- Benefits: Enhanced situational awareness, rapid response capabilities, force multiplication
Firefighting
- Usage: Fire surveillance, anti-fire ball projectile launching
- System: Equipped with anti-fire ball launching system for fire suppression
- Benefits: Rapid fire response, improved safety, effective fire containment
