OBZOR SYSTEM

OBZOR – holding the key to a modern and effective fighting force:

The first system, providing fully comprehensive approach to the post-flight debriefing
Fully synchronized ACMI, cockpit video and Flight Data Recorder (FDR) analysis – everything in one system, called OBZOR
Full spectrum of post-flight debriefing – from the pilot’s tactical performance down to aircraft handling and aircraft systems and engines performance analysis
Vastly efficient hardware approach, coupled with powerful mathematical method
A viable alternative to the traditional ACMI (both ranges-based and GPS-based) by enhancing performance and application features at a radically reduced cost
Direct support to the tactical flight training, flight safety, flight standards & quality assurance, engineering & maintenance

APPLICATION

  • Tested and installed on the MiG and Suhoi family of aircraft
  • Can be easily applied to any other type of aircraft
  • To take advantage of OBZOR full capabilities, the aircraft have to have a digital on-board FDR

CAPABILITIES

ACMI

  • Rangeless
  • GPS in-flight recording
  • Comprehensive post-mission debriefing
  • Accurate reconstruction of complex training missions
  • HUD video automatic synchronization
  • 2-D and 3-D mission replay
  • Unlimited number of participants
  • Fast data read-out and processing

Video

  • Cockpit HUD recording & replay

Flight Data Processing and Analysis

  • Direct and fast data read-out from various FDR types
  • Automatic preliminary Flight Data Processing
  • Automatic Flight Data Analysis – user’s specified

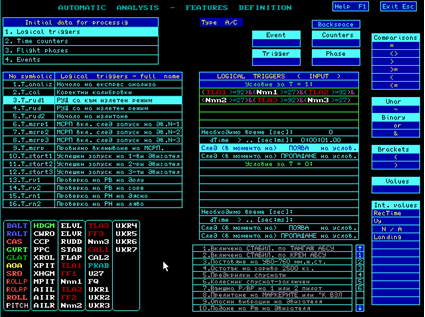

  • Flexible Context Editor
  • Manual Flight Data Analysis

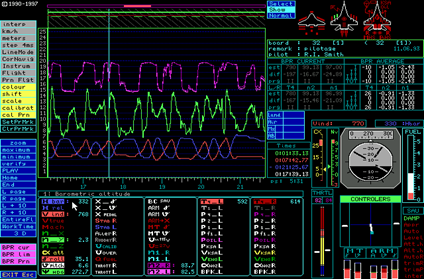

  • Flight parameters, A/C systems and engines analysis
  • Powerful and user-friendly graphics environment
  • Automatic missions & scenarios statistics and archive

MAIN COMPONENTS

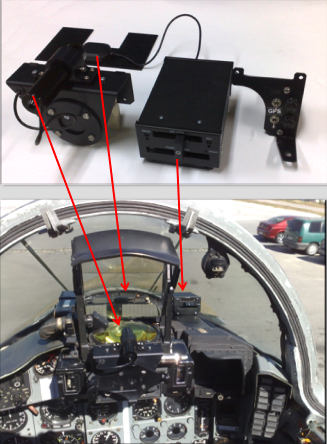

Aircraft Installed Module (AIM)

AIM components

  • GPS receiver
  • GPS antenna
  • CCTV camera
  • Memory block
  • Compact flash (data transfer)

AIM features

  • Easy installation
  • No aircraft modernization required
  • No interference with the aircraft avionics
  • Simple maintenance
  • Proven reliability in high-G maneuvering

AIM technical data

  • Power supply – 28 V DC
  • GPS record capacity – 64 flight hours
  • Video record capacity – 16 flight hours
  • Automatic switch on – 120 km/h
  • Automatic switch off – 20 km/h
  • Compact flash capacity – 32 GB

Ground Debriefing Station (GDS)

GDS features

  • OBZOR software can work on any Windows based PC platform.
  • Depending on customer preferences, the Ground Debriefing Station could be configured in a variety of options.

GDS options

  • Just 1 PC
  • 1 PC for data downloading + 1 PC for debriefing
  • 1 PC + 3 monitors (simultaneous display of 3D (2D), Video, Flight parameters for best analysis)
  • Theater configuration (large screens for mass-debrief)
  • Portable (lap-top)

Software package

FlightView-2.1

FlightView features
  • FV-2.1 is a powerful software, providing full flight reproduction of all airborne scenarios
  • User-friendly man-machine interface
  • Mission editing with selectable flight, weapons and safety parameters
  • Data fusion from GPS and FDR
  • Automatic events recognition and display
  • Fully automatic cockpit video synchronization and display
FV-2.1 data display

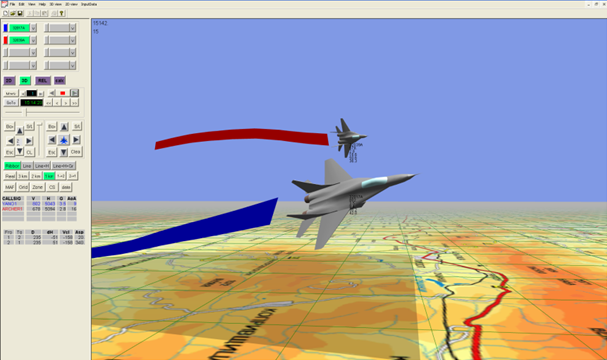

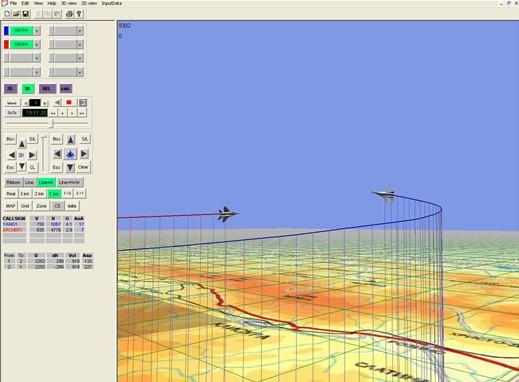

  • 3D
  • God’s Eye

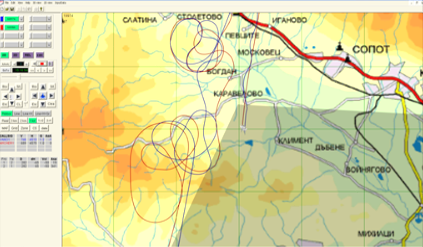

  • Plan Form

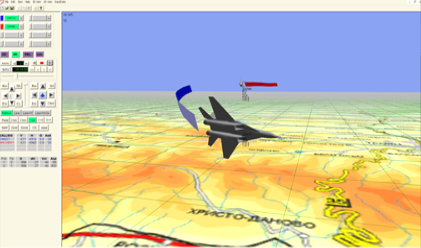

  • Chase
  • Cockpit View
  • Numerous flexible functions for: time control, point of view control, flight path presentation, flight data display, flight events recognition and display

FDPA-3.2

FDPA-3.2 features
  • The Flight Data Processing and Analysis software package provides state-of-the-art processing and analysis of the flight data, downloaded from any digital Flight Data Recorder (FDR).
  • FDPA-3.2 is a valuable tool for effective and safe flight training, qualitative engineering, maintenance and fleet management, by keeping high flight standards and quality assurance
  • FDPA-3.2 provides automatically all the essential flight parameters to FV-2.1 in order to achieve an effective ACMI capability at affordable price.
FDPA-3.2 capabilities
  • Direct and fast data read-out from various FDR types
  • Automatic preliminary Flight Data Processing
  • Automatic Flight Data Analysis – user’s specified
  • Flexible Context Editor
  • Manual Flight Data Analysis
  • Flight parameters, A/C systems and engines analysis
  • Powerful and user-friendly graphics environment
  • Automatic missions & scenarios statistics and archive
  • Provision of flight parameters for ACMI analysis
